Switches and Connectors for Model Rail
Print version
Ultra-Micro Slide Switch on Mounting Plate | JST-ZH Charge Connector | Micro Slide Switch/Charge Module | JST-ZH Charge or Receiver Power Lead (150mm)

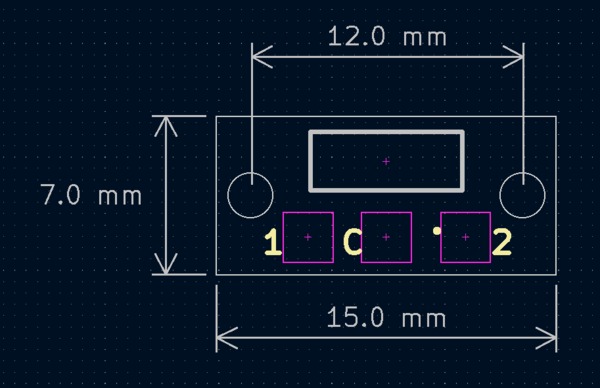

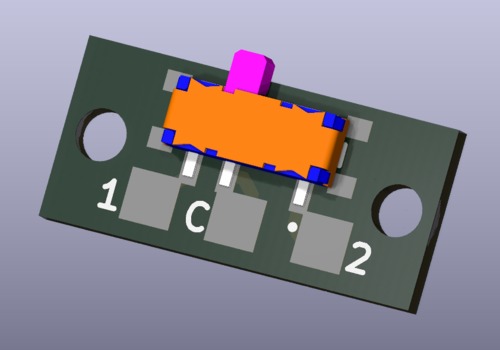

The micro slide switch mounted on a 15x7mm PCB with 2mm mounting holes at 12mm centre. The PCB has solder pads for attachment of lead-out wires.
Supplied with 2 x M2 nylon mounting screws & nuts.

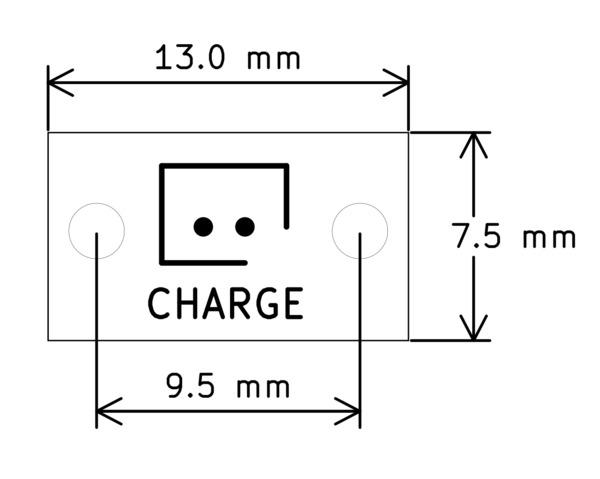

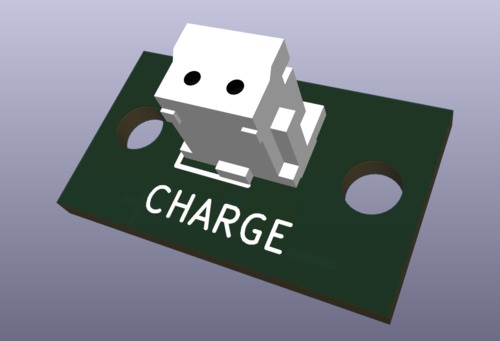

A 2 pin JST-ZH charge connector mounted on a 13x7.5mm GRP plate with 2mm mounting holes at 9.5mm centres.
Intended for use either with a single cell LiPo charger with JST-ZH connector option or a JST-ZH charge lead.

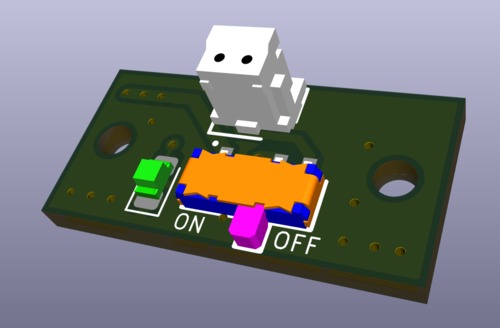

A tiny on/off slide switch and charge socket module for model vehicle installation using a single LiPo cell or NiMH battery. It comprises a ultra micro slide switch, JST-ZH charge connector and small LED mounted on a 20x10mm PCB. The LED may be used to repeat a receiver's on-board LED in case the receiver is completely installed with a vehicle body; this feature is called 'LED2' in receiver documentation.
Intended for use either with a single cell LiPo charger with JST-ZH connector option or a JST-ZH charge lead. The JST-ZH battery connector option is recommended so that all power connectors are compatible. Several LiPo cells are available with this connector fitted.
Price: from £5.15
A PPTC resettable fuse in the battery positive lead

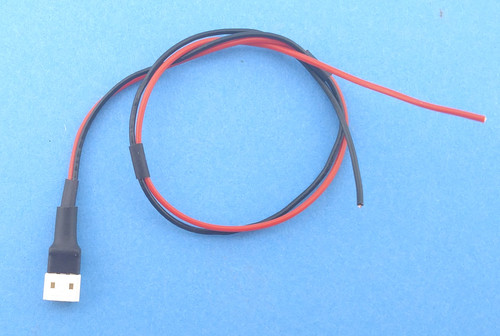

A 150mm lead with a 2 pin JST-ZH connector (female shell, male contacts) at one end and bare wires at the other end. Use to charge a 1S LiPo or multi-cell NiMH battery via a Micron switch module or charge plate.
